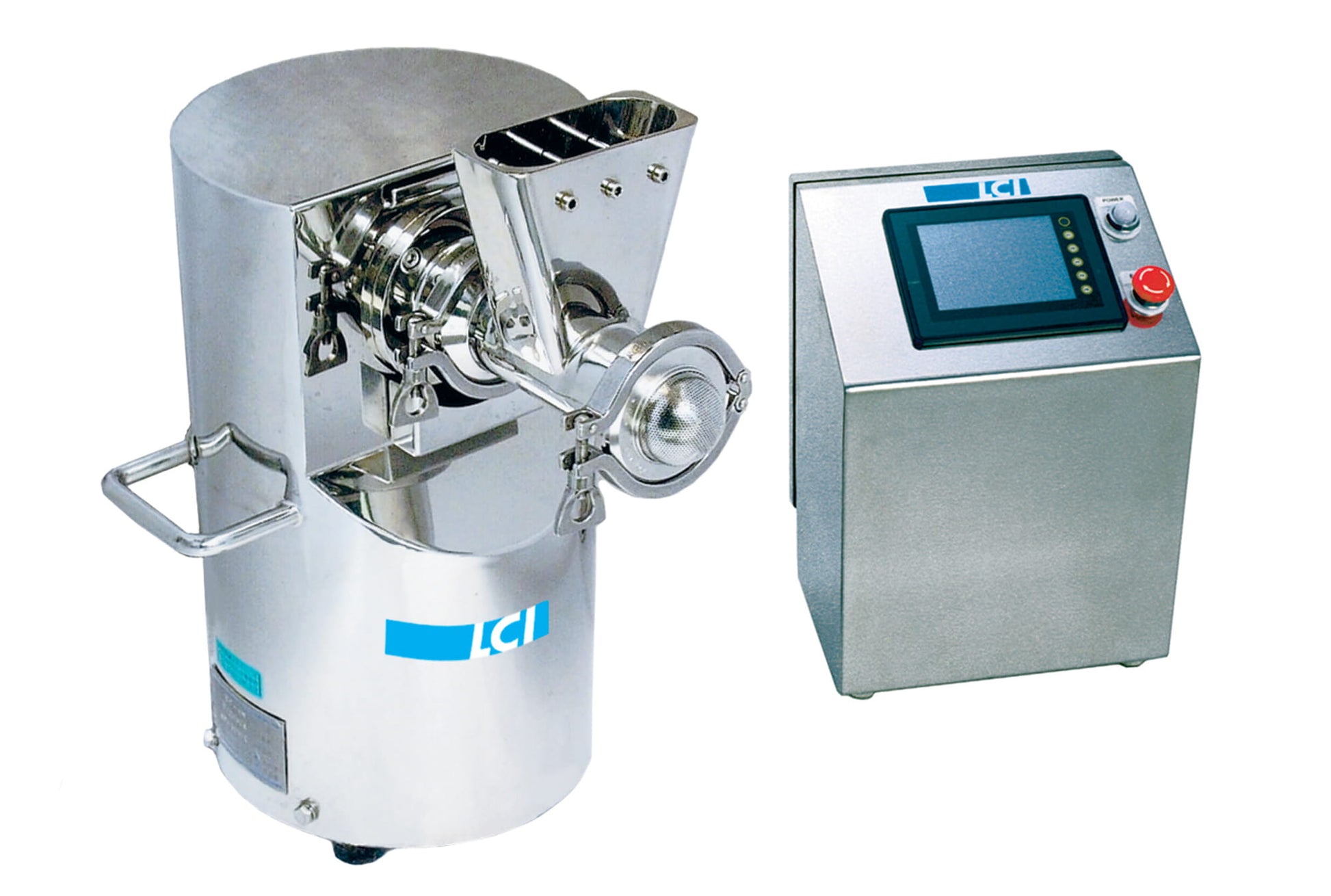

Multi Granulator MG-55 Lab Extruder

The Multi Granulator is a versatile research and development tool that provides the ability to evaluate three different extrusion techniques on one lab unit – dome, radial, and axial. The Multi Granulator is easy to setup and assemble with any of the three extrusion configurations for immediate use. The extruded granules can be dried or spheronized, depending on the desired end result.

• Single screw extruder with variable speed (10-90 rpm)
• Easily converts into a dome, radial, or axial extruder
• Capable of extruding granules from 0.3 mm to 8.0 mm diameter: axial from 2.0 mm to 8.0 mm diameter; radial from 0.6 mm to 1.2 mm diameter; dome from 0.3 mm to 2.0 mm diameter
• GMP design with 316SS contact parts; die is 304SS
• hp 230 VAC/3/60 variable speed drive for extrusion screw
• Sanitary clamps allow for quick disassembly, cleaning, and conversion to any of the three extrusion configurations. No tools required.
• Separate stainless steel control panel with PLC, Variable Frequency Drive, and touch screen
